关于kafka那些不得不说的故事

查看Topic#


private static void testCreateTopic() {

/**
 * bin/kafka-topics.sh --create \
 *     --bootstrap-server localhost:9092 \
 *     --replication-factor 1 \
 *     --partitions 1 \
 *     --topic streams-wordcount-output \
 *     --config cleanup.policy=compact
 */
    Properties props = new Properties();
    props.put(AdminClientConfig.BOOTSTRAP_SERVERS_CONFIG, "localhost:9092");

    try (Admin admin = Admin.create(props)) {
        String topicName = "create-topic-with-java";
        int partitions = 1;
        short replicationFactor = 1;
        // Create a compacted topic
        CreateTopicsResult result = admin.createTopics(Collections.singleton(
                new NewTopic(topicName, partitions, replicationFactor)
                        .configs(Collections.singletonMap(TopicConfig.CLEANUP_POLICY_CONFIG,
                                TopicConfig.CLEANUP_POLICY_COMPACT))));

        // Call values() to get the result for a specific topic
        KafkaFuture<Void> future = result.values().get(topicName);

        // Call get() to block until the topic creation is complete or has failed
        // if creation failed the ExecutionException wraps the underlying cause.
        future.get();
    } catch (ExecutionException e) {
        throw new RuntimeException(e);
    } catch (InterruptedException e) {
        throw new RuntimeException(e);
    }

}

java

创建Topic#

/**
 * bin/kafka-topics.sh --bootstrap-server localhost:9092 --describe
 */
private static void testTopicDescribe() {

    /*
    bin/kafka-topics.sh --bootstrap-server localhost:9092 --describe
    */
    Properties props = new Properties();
    props.put(AdminClientConfig.BOOTSTRAP_SERVERS_CONFIG, "localhost:9092");

    try (Admin admin = Admin.create(props)) {
            ListTopicsResult result = admin.listTopics();
        result.namesToListings().whenComplete(((stringTopicListingMap, throwable) -> {

            for (Map.Entry<String, TopicListing> entity:stringTopicListingMap.entrySet()) {
                System.out.println(entity.getKey());
                System.out.println(entity.getValue().topicId());
                System.out.println(entity.getValue().name());
                System.out.println(entity.getValue());

                System.out.println("------------------------------------------");
            }
        }));
    } catch (Throwable e) {
        throw new RuntimeException(e);
    }

}

java

删除Topic#


private static void testTopicDelete() {


    Properties props = new Properties();
    props.put(AdminClientConfig.BOOTSTRAP_SERVERS_CONFIG, "localhost:9092");

    try (Admin admin = Admin.create(props)) {

        TopicCollection topicCollection = TopicCollection.ofTopicNames(
                Collections.singleton("create-topic-with-java"));
        DeleteTopicsResult result = admin.deleteTopics(topicCollection);
        result.all().whenComplete((r,t) ->{
            if (t != null) {
                t.printStackTrace();
            }
            System.out.println("delete done!");
        });
    } catch (Throwable e) {
        throw new RuntimeException(e);
    }


}

java

基本消费者代码#



private static void testAutoConsumer(){

    // 配置属性
    Properties props = new Properties();
    props.setProperty("bootstrap.servers", "localhost:9092");
    props.setProperty("group.id", "test");
    props.setProperty("enable.auto.commit", "true");
    props.setProperty("auto.commit.interval.ms", "1000");
    props.setProperty("key.deserializer", "org.apache.kafka.common.serialization.StringDeserializer");
    props.setProperty("value.deserializer", "org.apache.kafka.common.serialization.StringDeserializer");

    try(KafkaConsumer<String, String> consumer = new KafkaConsumer<>(props)) {
        // 订阅
        consumer.subscribe(Arrays.asList("quickstart-events"));
        while (true) {
            // 拉取
            ConsumerRecords<String, String> records = consumer.poll(Duration.ofMillis(100));
            for (ConsumerRecord<String, String> record : records)
                System.out.printf("offset = %d, key = %s, value = %s%n", record.offset(), record.key(), record.value());
        }
    }

}

java

更详细的消费控制#

 private static void testManualConsumer() {

    Properties props = new Properties();

    props.setProperty("bootstrap.servers", "localhost:9092");
    props.setProperty("group.id", "test");
    props.setProperty("enable.auto.commit", "false");
    props.setProperty("key.deserializer", "org.apache.kafka.common.serialization.StringDeserializer");
    props.setProperty("value.deserializer", "org.apache.kafka.common.serialization.StringDeserializer");
    KafkaConsumer<String, String> consumer = new KafkaConsumer<>(props);

    consumer.subscribe(Arrays.asList("quickstart-events"), new ConsumerRebalanceListener() {
        @Override
        public void onPartitionsRevoked(Collection<TopicPartition> collection) {
            for (TopicPartition part:collection) {
                // 获取offset 可以自行处理
                Long currOffset = consumer.position(part);
                // we can save the offset in own db
            }
        }

        @Override
        public void onPartitionsAssigned(Collection<TopicPartition> collection) {

//                consumer.seekToBeginning(collection);
            for (TopicPartition part:collection) {
                // get offset from own db
                // 可以从自己的系统取得offset 以达将offset与业务系统进行关联
                Long currOffset = 0L;
                consumer.seek(part,currOffset);
            }

        }
    });
    // 按照批去
    final int minBatchSize = 10;

    List<ConsumerRecord<String, String>> buffer = new ArrayList<>();
    while (true) {
        ConsumerRecords<String, String> records = consumer.poll(Duration.ofMillis(100));
        for (ConsumerRecord<String, String> record : records) {
            buffer.add(record);
        }
        if (buffer.size() >= minBatchSize) {
            printThis(buffer);
            // 手动提交
            consumer.commitAsync();
            buffer.clear();
        }
    }

}

java

指定分区#

    // 指定分区
String topic = "foo";
TopicPartition partition0 = new TopicPartition(topic, 0);
TopicPartition partition1 = new TopicPartition(topic, 1);
consumer.assign(Arrays.asList(partition0, partition1));

java

基本生产者#


Properties props = new Properties();
props.put("bootstrap.servers", "localhost:9092");
props.put("linger.ms", 1);
props.put("key.serializer", "org.apache.kafka.common.serialization.StringSerializer");
props.put("value.serializer", "org.apache.kafka.common.serialization.StringSerializer");


try(Producer<String, String> producer = new KafkaProducer<>(props)){
    for (int i = 0; i < 100; i++) {
        producer.send(new ProducerRecord<String, String>("quickstart-events", Integer.toString(i), Integer.toString(i)));
    }
    producer.flush();
}

java

事务#

private static void testTransactions(){

    Properties props = new Properties();
    props.put("bootstrap.servers", "localhost:9092");
    props.put("transactional.id", "my-transactional-id");
    try(Producer<String, String> producer = new KafkaProducer<>(props, new StringSerializer(), new StringSerializer())) {
        producer.initTransactions();

        producer.beginTransaction();
        for (int i = 0;i<10;i++){
            producer.send(new ProducerRecord<>("quickstart-events",Integer.toString(i),Integer.toString(i)));
        }
        producer.commitTransaction();
    } catch (ProducerFencedException | OutOfOrderSequenceException | AuthorizationException e) {

    } catch (KafkaException e) {

    }

}

java

Stream 基本结构#

// 属性配置
Properties props = new Properties();
props.put(StreamsConfig.APPLICATION_ID_CONFIG, "streams-wordcount");
props.put(StreamsConfig.BOOTSTRAP_SERVERS_CONFIG, "localhost:9092");
props.put(StreamsConfig.DEFAULT_KEY_SERDE_CLASS_CONFIG, Serdes.String().getClass());
props.put(StreamsConfig.DEFAULT_VALUE_SERDE_CLASS_CONFIG, Serdes.String().getClass());

// stream 构建器
final StreamsBuilder builder = new StreamsBuilder();

// builder.stream("Source-Topic").xxx.xxx.to("Sink-Topic")
builder.<String, String>stream("streams-plaintext-input")
        .flatMapValues(value -> Arrays.asList(value.toLowerCase(Locale.getDefault()).split("\\W+")))
        .groupBy((key, value) -> value)
        .count(Materialized.<String, Long, KeyValueStore<Bytes, byte[]>>as("counts-store"))
        .toStream()
        .to("streams-wordcount-output", Produced.with(Serdes.String(), Serdes.Long()));

final Topology topology = builder.build();
final KafkaStreams streams = new KafkaStreams(topology, props);
final CountDownLatch latch = new CountDownLatch(1);

// attach shutdown handler to catch control-c
Runtime.getRuntime().addShutdownHook(new Thread("streams-shutdown-hook") {
    @Override
    public void run() {
        streams.close();
        latch.countDown();
    }
});

try {
    streams.start();
    latch.await();
} catch (Throwable e) {
    System.exit(1);
}
System.exit(0);

java

Processor#



public class WorldCountProcessor implements Processor<String,String,String,String> {
    private KeyValueStore<String,Integer> keyValueStore;

    @Override
    public void process(Record<String,String> record) {

        final String[] words =
                record.value().toUpperCase(Locale.ROOT).split("\\W+");
        for (final String word:words) {
            final Integer oldValue = keyValueStore.get(word);
            if (oldValue == null) {
                keyValueStore.put(word,1);
            }else {
                keyValueStore.put(word,oldValue + 1);
            }
        }

    }

    @Override
    public void close() {

    }

    @Override
    public void init(ProcessorContext context) {
        context.schedule(Duration.ofSeconds(1),
                PunctuationType.STREAM_TIME,
                timestamp ->{
                    try(final KeyValueIterator<String,Integer> iter = keyValueStore.all()) {
                        while (iter.hasNext()) {
                            final KeyValue<String,Integer> entry = iter.next();
                            context.forward(new Record(entry.key,entry.value.toString(),timestamp));
                        }
                    }
                });
        keyValueStore = context.getStateStore("Counts");
    }
}

java

Topology use Processor#

Topology builder = new Topology();
    final StoreBuilder<KeyValueStore<String, Long>> countsStoreBuilder =
            Stores
                    .keyValueStoreBuilder(
                            Stores.persistentKeyValueStore("Counts"),
                            Serdes.String(),
                            Serdes.Long()
                    );
    builder.addSource("Source","source-topic")
            .addProcessor("Processor", () -> new WorldCountProcessor(),"Source")
            .addStateStore(countsStoreBuilder,"Process")
            .addSink("Sink","sink-topic","Process");

查看Topic#

创建Topic#

删除Topic#

基本消费者代码#

更详细的消费控制#

指定分区#

基本生产者#

事务#

Stream 基本结构#

Processor#

Topology use Processor#

Kafka 设计思想#

Poll or Push ↗#

Message Format ↗#

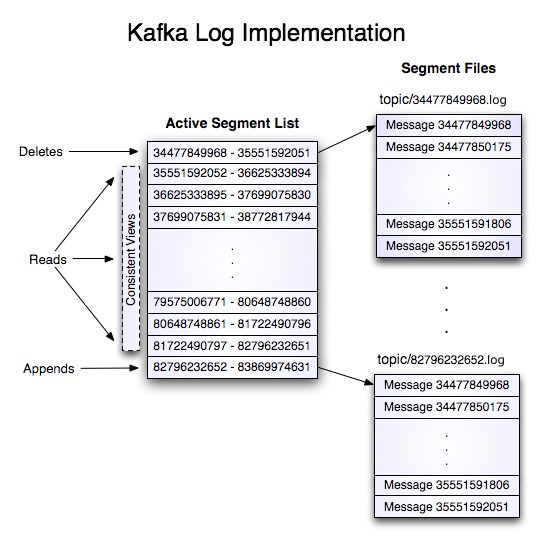

log 文件#
