关于spring那些不得不说的故事

Spring Security (6.2.x) Custom Usage#

AuthenticationProvider


import org.springframework.security.authentication.UsernamePasswordAuthenticationToken;
import org.springframework.security.authentication.dao.AbstractUserDetailsAuthenticationProvider;
import org.springframework.security.core.Authentication;
import org.springframework.security.core.AuthenticationException;
import org.springframework.security.core.authority.SimpleGrantedAuthority;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.stereotype.Component;

import java.util.ArrayList;
import java.util.List;
@Component
public class AkSkAuthenticationProvider extends AbstractUserDetailsAuthenticationProvider {
    // 进行实际的用户信息校验
    @Override
    public Authentication authenticate(Authentication authentication) throws AuthenticationException {
        System.out.println(authentication.getName());
        List<String> perms = new ArrayList<>(3);
        perms.add("operator");
        perms.add("viewer");
        perms.add("admin");
        List<SimpleGrantedAuthority> authorities = new ArrayList<>(perms.size());
        for (String perm:perms) {
            authorities.add(new SimpleGrantedAuthority(perm));
        }
        return new MyToken("ak","sk",authorities);
    }
    // 判断当前Authentication 是否会用该Provider校验
    @Override
    public boolean supports(Class<?> authentication) {
        return MyToken.class.isAssignableFrom(authentication);
    }
}

java

AbstractAuthenticationProcessingFilter


import jakarta.servlet.FilterChain;
import jakarta.servlet.ServletException;
import jakarta.servlet.http.HttpServletRequest;
import jakarta.servlet.http.HttpServletResponse;
import org.springframework.security.authentication.AuthenticationManager;
import org.springframework.security.core.Authentication;
import org.springframework.security.core.AuthenticationException;
import org.springframework.security.core.authority.SimpleGrantedAuthority;
import org.springframework.security.web.authentication.AbstractAuthenticationProcessingFilter;
import org.springframework.security.web.util.matcher.AntPathRequestMatcher;

import java.io.IOException;
import java.util.ArrayList;
import java.util.List;
import java.util.UUID;

public class AkSkAuthenticationFilter extends AbstractAuthenticationProcessingFilter {
    public AkSkAuthenticationFilter(String defaultFilterProcessesUrl, AuthenticationManager authenticationManager) {
        super(new AntPathRequestMatcher(defaultFilterProcessesUrl, "GET"));
        this.setAuthenticationManager(authenticationManager);
    }

    @Override
    public Authentication attemptAuthentication(HttpServletRequest request, HttpServletResponse response) throws AuthenticationException, IOException, ServletException {
        String ak = request.getHeader("ak");
        String sk = request.getHeader("sk");
        if ("ak".equals(ak) && "sk".equals(sk)) {
            List<String> perms = new ArrayList<>(3);
            perms.add("operator");
            perms.add("viewer");
            perms.add("admin");
            List<SimpleGrantedAuthority> authorities = new ArrayList<>(perms.size());
            for (String perm:perms) {
                authorities.add(new SimpleGrantedAuthority(perm));
            }
            // 调用Provider校验
            return this.getAuthenticationManager().authenticate(new MyToken(ak,sk,authorities));
        }

        return null;
    }

    // 成功
    @Override
    protected void successfulAuthentication(HttpServletRequest request, HttpServletResponse response, FilterChain chain, Authentication authResult) throws IOException, ServletException {
        System.out.println("success");
        final String xId = UUID.randomUUID().toString();
        response.getWriter().write(xId);
    }

    @Override
    protected void unsuccessfulAuthentication(HttpServletRequest request, HttpServletResponse response,
                                              AuthenticationException failed)
            throws IOException, ServletException {
        System.out.println("fail");
        super.unsuccessfulAuthentication(request, response, failed);
    }
}

java

Configuration


import com.example.demo.sec.AkSkFilter;
import com.example.demo.sec.AkSkAuthenticationProvider;
import com.example.demo.sec.AkSkAuthenticationFilter;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.security.authentication.AuthenticationManager;
import org.springframework.security.authentication.AuthenticationProvider;
import org.springframework.security.authentication.ProviderManager;
import org.springframework.security.config.annotation.method.configuration.EnableGlobalMethodSecurity;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.configuration.EnableWebSecurity;
import org.springframework.security.config.annotation.web.configurers.AbstractHttpConfigurer;
import org.springframework.security.web.SecurityFilterChain;
import org.springframework.security.web.csrf.CsrfFilter;

import static org.springframework.security.config.http.SessionCreationPolicy.STATELESS;

@Configuration
@EnableWebSecurity
@EnableGlobalMethodSecurity(prePostEnabled = true)
public class SecurityConfiguration {

    @Autowired
    private AkSkFilter akSkFilter;

    // AbstractAuthenticationProcessingFilter
    @Bean
    public AkSkAuthenticationFilter theAuthFilter() {
        return new AkSkAuthenticationFilter("/v1/token",authenticationManager());
    }

    // 包装 AuthenticationProvider
    @Bean
    public AuthenticationManager authenticationManager(){
        ProviderManager authenticationManager = new ProviderManager(authenticationProvider());
        authenticationManager.setEraseCredentialsAfterAuthentication(true);
        return authenticationManager;
    }
    // AuthenticationProvider
    @Bean
    public AuthenticationProvider authenticationProvider() {
        return new AkSkAuthenticationProvider();
    }



    @Bean
    public SecurityFilterChain authorizeRequestsFilterChain(HttpSecurity http) throws Exception {
        http.csrf(AbstractHttpConfigurer::disable)
                .authorizeHttpRequests(req ->
                        req.requestMatchers("/v1/token")
                                .permitAll()
                                .anyRequest().authenticated()

                )
                 // 设置authenticationManager
                .authenticationManager(authenticationManager())
                .sessionManagement(session -> session.sessionCreationPolicy(STATELESS))
                //  设置自定义的校验
                .addFilterAfter(theAuthFilter(), CsrfFilter.class)
                .addFilterBefore(akSkFilter, AkSkAuthenticationFilter.class);

        return http.build();
    }

java

Spring IoC and Bean#

The org.springframework.beans and org.springframework.context packages are the basis for Spring Framework’s IoC container. ↗ The BeanFactory interface provides an advanced configuration mechanism capable of managing any type of object. ApplicationContext is a sub-interface of BeanFactory. It adds:

Easier integration with Spring’s AOP features

Message resource handling (for use in internationalization)

Event publication

Application-layer specific contexts such as the WebApplicationContext for use in web applications.

The Spring IoC container

Create Config Get Beans#

ApplicationContext context1 = new ClassPathXmlApplicationContex("services.xml");
ApplicationContext context2 = new GenericGroovyApplicationContext("services.groovy");
ApplicationContext context3 = FileSystemXmlApplicationContext("")

java

ApplicationContext context = new ClassPathXmlApplicationContext("services.xml");

// getBean
DemoEntity entity1 = context.getBean("entity1", DemoEntity.class);

System.out.println(entity1);

DemoEntity entityAlias = context.getBean("entityAlias",DemoEntity.class);
System.out.println(entityAlias);
assert entity1 == entityAlias;

java

XML config attrs#

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:p="http://www.springframework.org/schema/p"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
		https://www.springframework.org/schema/beans/spring-beans.xsd">

        <!-- factory-method -> public static factory method  -->
    <bean id="entity2" class="tech.realcpf.spring.dto.DemoEntity" factory-method="createInstance">
        <property name="name" value="jiacheng.liu"/>
        <property name="age" value="25"/>
    </bean>


    <!-- use    xmlns:p="http://www.springframework.org/schema/p"-->
    <bean id="entity3" class="tech.realcpf.spring.dto.DemoEntity"
        destroy-method="destroy"
        p:name="jc.liu"
        p:age="89">
        <!-- additional collaborators and configuration for this bean go here -->
    </bean>

    <!-- constructor-arg -->
    <bean id="entity1" class="tech.realcpf.spring.dto.DemoEntity">
        <constructor-arg type="java.lang.String" value="by constructor" name="name" index="0"></constructor-arg>
        <constructor-arg type="java.lang.Integer" value="123" name="age" index="1"></constructor-arg>
    </bean>

    <alias name="entity1" alias="entityAlias"></alias>

    <!-- depends-on  other beans -->
   <bean id="beanOne" class="ExampleBean" depends-on="manager"/>
<!--    <bean id="manager" class="ManagerBean" />-->

    <!-- lazy-init  -->
   <bean id="lazy" class="com.something.ExpensiveToCreateBean" lazy-init="true"/>
<!--    <bean name="not.lazy" class="com.something.AnotherBean"/>-->

    <!-- init method -->
   <bean id="exampleInitBean" class="examples.ExampleBean" init-method="init"/>
   <!-- scope -->
   <bean id="exampleInitBean" class="examples.ExampleBean" scope="prototype"/>
</beans>

xml

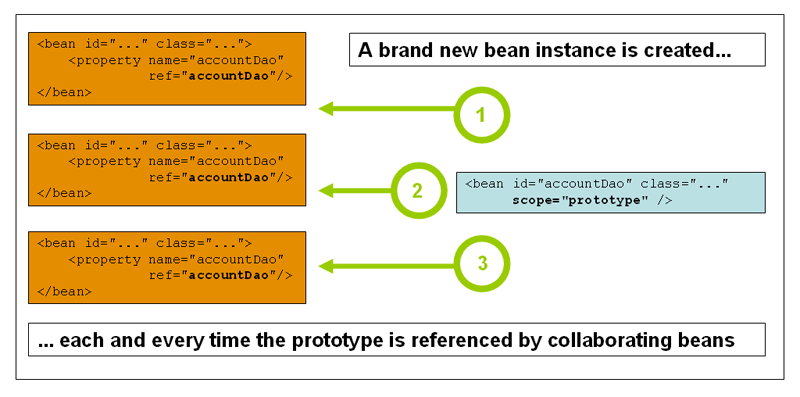

prototype

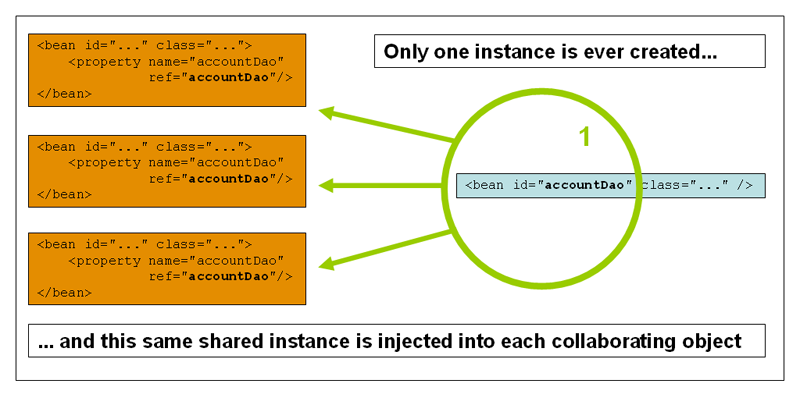

singleton

BeanPostProcessor#


private static final BeanPostProcessor beanPostProcessor = new BeanPostProcessor() {
    @Override
    public Object postProcessBeforeInitialization(Object bean, String beanName) throws BeansException {
        return BeanPostProcessor.super.postProcessBeforeInitialization(bean, beanName);
    }

    @Override
    public Object postProcessAfterInitialization(Object bean, String beanName) throws BeansException {
        System.out.println("Bean '" + beanName + "' created : " + bean.toString());
        return BeanPostProcessor.super.postProcessAfterInitialization(bean, beanName);
    }
};

// PropertyOverrideConfigurer
// PropertySourcesPlaceholderConfigurer

private static final BeanFactoryPostProcessor beanFactoryPostProcessor = new BeanFactoryPostProcessor() {
    @Override
    public void postProcessBeanFactory(ConfigurableListableBeanFactory beanFactory) throws BeansException {

    }
};

java

Spring SPI#


通过 resources/META-INF/spring.factories 作为SPI的配置文件
内容如下：
org.springframework.context.ApplicationContextInitializer=\
tech.realcpf.spring.DemoApplicationContextInitializer
org.springframework.context.ApplicationListener=\
tech.realcpf.spring.DemoApplicationListener


如果用spring-boot，再spring-boot3之后配置文件改成
 resources/META-INF/spring/org.springframework.boot.autoconfigure.AutoConfiguration.imports 作为SPI的配置文件
内容则是一个类一行

其中 org.springframework.boot.autoconfigure.AutoConfiguration 是Interface名

plaintext

Spring Aop#

https://docs.spring.io/spring-framework/reference/core/aop-api/pointcuts.html ↗

Proxy - ProxyFactoryBean#

ApplicationContext context =
        new ClassPathXmlApplicationContext("aopdemo.xml");
IDemoModel model = (IDemoModel) context.getBean("demoModelProxy");

System.out.println(model.hello("jc.liu"));

java


<bean id="demoModelProxy"
   class="org.springframework.aop.framework.ProxyFactoryBean">
       <property name="proxyInterfaces">
           <list>
               <value>tech.realcpf.spring.aop.IDemoModel</value>
           </list>
       </property>

       <property name="target" ref="demoModelImpl">

       </property>

       <property name="interceptorNames">
           <list>
                <value>demoModelArgs</value> <!-- impl MethodBeforeAdvice -->
               <value>demoModelReturn</value> <!-- impl AfterReturningAdvice -->
           </list>
       </property>
   </bean>

xml

Auto Proxy - BeanNameAutoProxyCreator#

ApplicationContext context =
                new ClassPathXmlApplicationContext("aopdemo.xml");
IDemoModel demoModel = context.getBean(IDemoModel.class);
System.out.println(demoModel.hello("jc.liu"));

java


 <bean class="org.springframework.aop.framework.autoproxy.BeanNameAutoProxyCreator">
                <property name="interceptorNames">
                    <list>
                        <value>demoModelArgs</value>
                        <value>demoModelReturn</value>
                    </list>
                </property>

        <!--        for auto match-->
        <property name="beanNames" value="*Model"></property>
    </bean>

xml

Aspectj#


// call before
@Before("tech.realcpf.spring.aop.aj.SystemArchitecture.service()")
public void callBefore(JoinPoint joinPoint) {
    System.out.println("Before : " + Arrays.toString(joinPoint.getArgs()));
}


// call after
@AfterReturning(pointcut = "tech.realcpf.spring.aop.aj.SystemArchitecture.service()",
        returning = "result")
public void logResult(Object result) {
    System.out.println("after :" + result);
}

@Pointcut("execution(* tech.realcpf.spring.aop.aj..*(..))")
public void service() {}

java


    <!-- enable aspectj -->
    <aop:aspectj-autoproxy/>

xml

#Spring EL#

https://docs.spring.io/spring-framework/reference/core/expressions/evaluation.html ↗

Spring Security (6.2.x) Custom Usage#

Spring IoC and Bean#

Create Config Get Beans#

XML config attrs#

BeanPostProcessor#

Spring SPI#

Spring Aop#

Proxy - ProxyFactoryBean#

Auto Proxy - BeanNameAutoProxyCreator#

Aspectj#

#Spring EL#

更多的语法语义 ↗#
